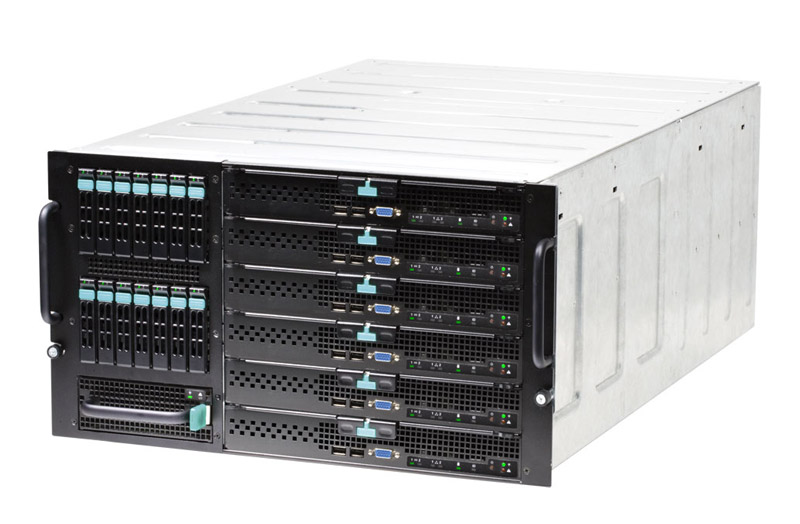

Intel® Modular Server Chassis MFSYS25V2

Specifications

  • Product Collection Intel® Modular Server Chassis Family
  • Launch Date Q1'11
  • Status End of Life
  • Expected Discontinuance Q1'13
  • EOL Announce Sunday, March 31, 2013
  • Last Order Friday, November 1, 2013
  • Last Receipt Attributes Sunday, March 30, 2014
  • Limited 3-year Warranty Yes
  • Extended Warranty Available for Purchase (Select Countries) Yes
  • Chassis Form Factor Pedestal, 6U Rack Option
  • Chassis Dimensions 10.3 x 17.5 x 28.4
  • Target Market Small and Medium Business
  • Power Supply 1000 W
  • Power Supply Type AC
  • Redundant Fans Supported
  • Redundant Power Supported Supported, requires additional power supply
  • Backplanes Included; Integrated shared storage through a SAN fabric; includes a storage controller with a redundant option available
  • Included Items (14) Drive carriers; (1) GbE switch; (1) Main and I/O fans; (1) Management module; (2) Power supplies; (2) Power supply fan; (5) Server blanks; (1) Storage module with battery backup. *Contains new MFCMM2 & MFMIDPLANE2
  • # of Front Drives Supported 14
  • Front Drive Form Factor Hot-swap 2.5"
  • Recommended Customer Price N/A

Supplemental Information

  • Description Modular Server Chassis with integrated 2.5" shared HDD bay
  • Additional Information URL View now

Package Specifications

  • Max CPU Configuration 2

Compatible Products

Server/Workstation Board

Product Name Status Board Form Factor Chassis Form Factor Socket Embedded Options Available TDP Compare
All | None
Intel® Compute Module MFS2600KI End of Life 1U, custom for Intel Modular Server Pedestal, 6U Rack Option Socket R No 95 W
Intel® Compute Module MFS5000SI End of Life 1U Rack or Pedestal No 80 W
Intel® Compute Module MFS5520VIR End of Life 1U Rack or Pedestal LGA1366 95 W

Software

Product Name Status Compare
All | None
Intel® Modular Server Advanced Management Pack End of Interactive Support

Ordering and Compliance

Retired and discontinued

Intel® Server Chassis MFSYS25V2, Single

  • Ordering Code MFSYS25V2

Trade compliance information

  • ECCN5A992C
  • CCATSG135162
  • US HTS8471500150

PCN/MDDS Information

Launch Date

The date the product was first introduced.

Expected Discontinuance

Expected Discontinuance is an estimate of when a product will begin the Product Discontinuance process. The Product Discontinuance Notification (PDN), published at the start of the discontinuance process, will include all EOL Key Milestone details. Some business units may communicate EOL timeline details before the PDN is published. Contact your Intel representative for information on EOL timelines and extended life options.

Recommended Customer Price

Recommended Customer Price (RCP) is pricing guidance only for Intel products. Prices are for direct Intel customers, typically represent 1,000-unit purchase quantities, and are subject to change without notice. Prices may vary for other package types and shipment quantities. If sold in bulk, price represents individual unit. Listing of RCP does not constitute a formal pricing offer from Intel.

PA

Pre Active: Orders may be taken, but not scheduled, nor shipped.

AC

Active: This specific part is active.

EN

End of Life: Product End of Life notification has been published.

NO

No Orders after Last Order Entry Date: Used for end of life products. Allows for delivery and returns.

OB

Obsolete: Inventory available. No future supplies will be available.

RP

Retired Price: This specific part is no longer being manufactured or purchased and no inventory is available.

RT

Retired: This specific part is no longer being manufactured or purchased and no inventory is available.

NI

Not Implemented: No Orders, Inquiries, Quotes, Deliveries Returns, or Shipments.

QR

Quality/Reliability Hold.

RS

Reschedule
