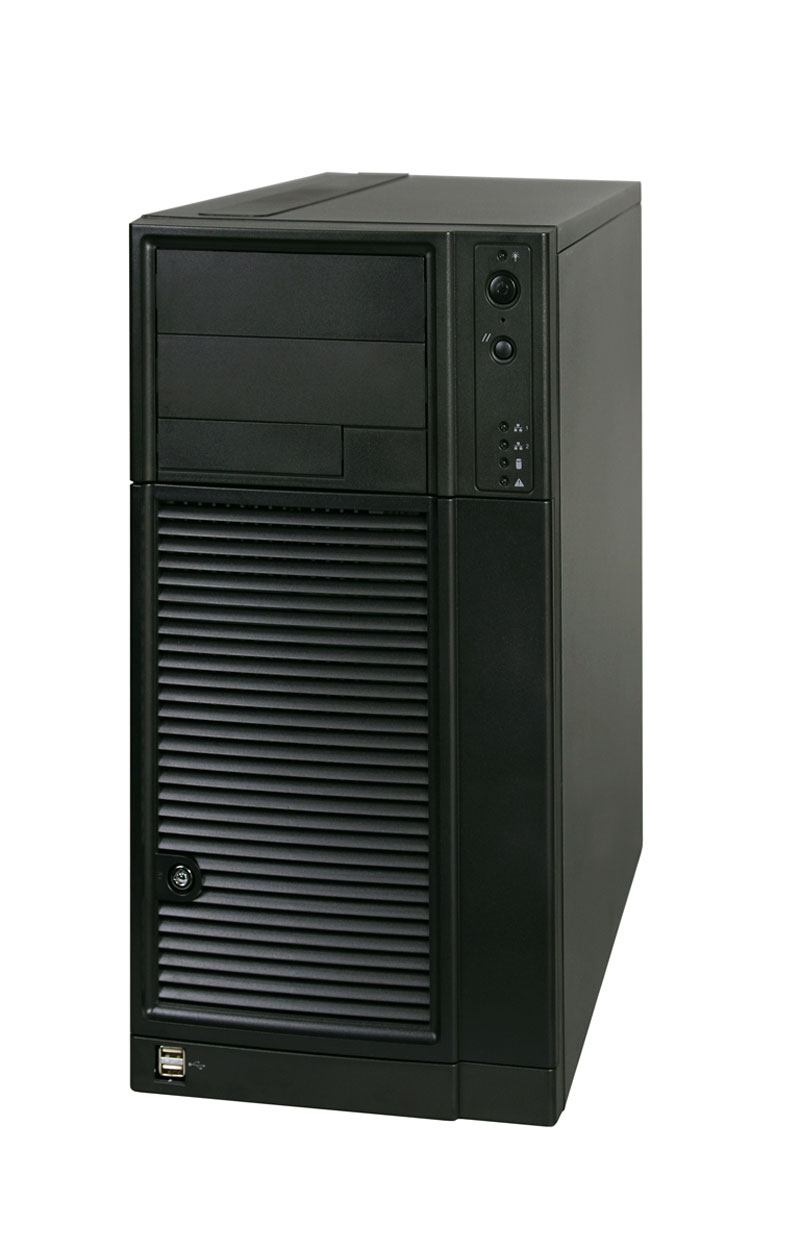

Intel® Workstation Chassis SC5650WS

Specifications

-
Essentials
Launch Date Q1'09
Status End of Life
Expected Discontinuance Q1'13
EOL Announce Sunday, March 31, 2013
Last Order Monday, September 30, 2013
Last Receipt Attributes Friday, January 31, 2014
Limited 3-year Warranty Yes
Chassis Form Factor Pedestal, 6U Rack Option
Chassis Dimensions 17.8 x 9.256 x 19
Datasheet Link
Description A cost-effective entry-level chassis designed for reliable operation for small business servers and workstation environments
Target Market Workstation
Power Supply 1000 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans Not Supported
Redundant Power Supported No
Backplanes Supports up to 6 fixed drives, upgradeable to 6 Hot-Swap drives (SAS or SATA)
Included Items (6) Drive carrier; (1) Intrusion switch assembly; (1) Front panel cable; (1) Non-redundant 1000W power supply; (3) Fixed cooling fans with ducting; (1) SATA power adapter cable; (1) USB cable
# of Front Drives Supported 6
Front Drive Form Factor Hot-swap 2.5" or 3.5"
Additional Information URL Link
Recommended Customer Price N/A
-
Package Specifications
Max CPU Configuration 2

Ordering and Spec Information

Trade Compliance Information

US HTS
8473305100-CHAS

Retired and Discontinued

Spec Code Ordering Code Step ECCN CCATS RCP
Intel® Workstation Chassis SC5650WS, Single
SC5650WS 5A992C G135162 N/A
SC5650WSNA 4A994 NA N/A
